Solar tracker with battery

Bluetooth®

The solar tracker is a technical innovation for tracking the sunlight, in order to increase the yield of photovoltaic panels. The productivity gain can reach 40% with a 2-axis tracking system. TRACSOL2 is a teaching solution for learning this technique.

Skonfiguruj produkt
Wybierz referencję

Wybrane referencję TRACSOL2

Ilość

Pobierz (TRACSOL2.pdf)

Pobierz (TRACSOL2_en.pdf)

Reference sélectionnée TRACSOL2

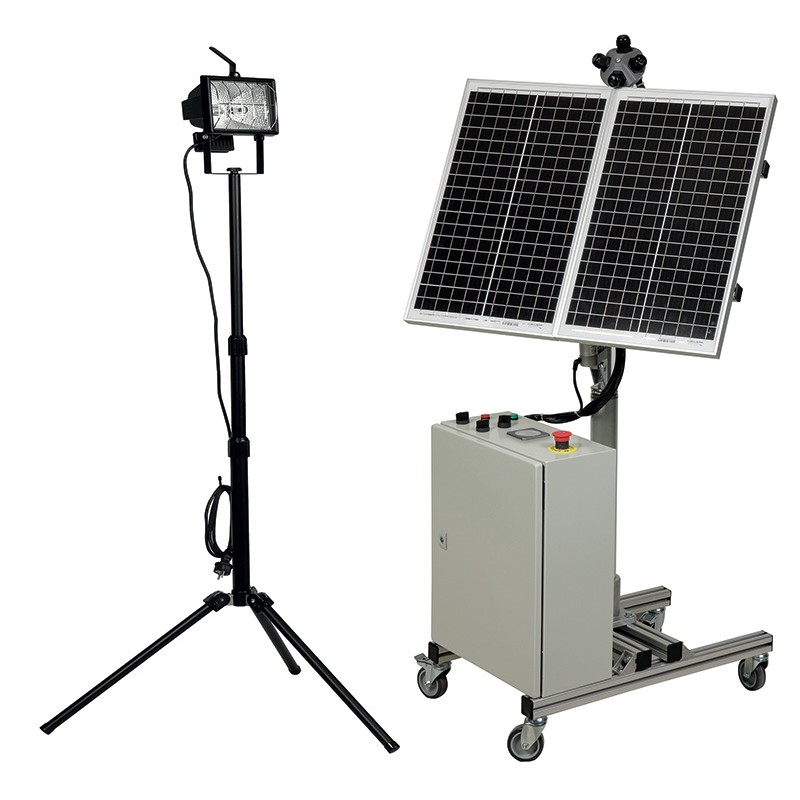

TRACSOL2 is an educational solution for studying solar tracker technology. This technical innovation tracks the sun's rays to increase the efficiency of photovoltaic panels. Productivity gains can reach 40% with this type of installation.
The system, mounted on a wheeled aluminum chassis, is equipped with an electric actuator for vertical (zenithal) orientation and a geared motor for horizontal (azimuth) orientation. These are controlled by an Arduino® microcontroller, which uses four light sensors to locate the strongest light source. The free, French-language Arduino IDE® software included with the model allows users to view and modify the microcontroller's programming code via a USB connection.
It also allows users to visualize light levels in real time on a graph. TRACSOL2 is completely self-sufficient thanks to batteries recharged by the solar panels. No 230V mains connection is required. Only the artificial solar power source for using TRACSOL2 inside a building is powered by 230 VAC. The voltage from the solar panels is available at two safety terminals.

EDUCATIONAL OBJECTIVES
• Study and commissioning of a solar tracker.
• Understanding the operation of solar cells.
• Mastering the wiring of components in an off-grid photovoltaic system.
• Visualizing the system's electrical parameters via Bluetooth®.
• Comparing the performance of a photovoltaic system with and without a solar tracker.
• Visualizing and understanding Arduino® programming code.

Practical works
• Course on different solar panel technologies (Monocrystalline, Polycrystalline, Amorphous)
• Study on solar panel positioning for maximum efficiency.
• Study of solar irradiation.
• Review of direct, diffuse, and reflected solar radiation.
• Comparison of power outputs measured with fixed panels and tracking panels.
• Study and creation of the wiring diagram for an off-grid solar power system.
• Measurement of current and voltage at various points in the wiring.
• Interpretation of measurements and calculation of efficiency.
• Calculation of battery discharge time based on load.
• Downloading and use of the Bluetooth® application.
• Study and creation of the wiring diagram for the solar tracking system.
• Review of the Arduino® programming language code.
