Complete radio kit - SOMFY technology

Educational objectives
• Discover the home automation environment of an electrical installation
• Discover and study the features of a radio home automation installation
• Create electrical diagrams
• Create a component parts list
• Analyze manufacturer technical data sheets
• Configure DD components
• Connect and wire electrical components
• Commission the installation
• Configure a Wi-Fi network for control via a tablet or smartphone

Configure your product
Select a reference

Selected reference KX-SF

Quantity

Download (KX-SF.pdf)

Download (KX-SF_en.pdf)

Selected reference KX-SF

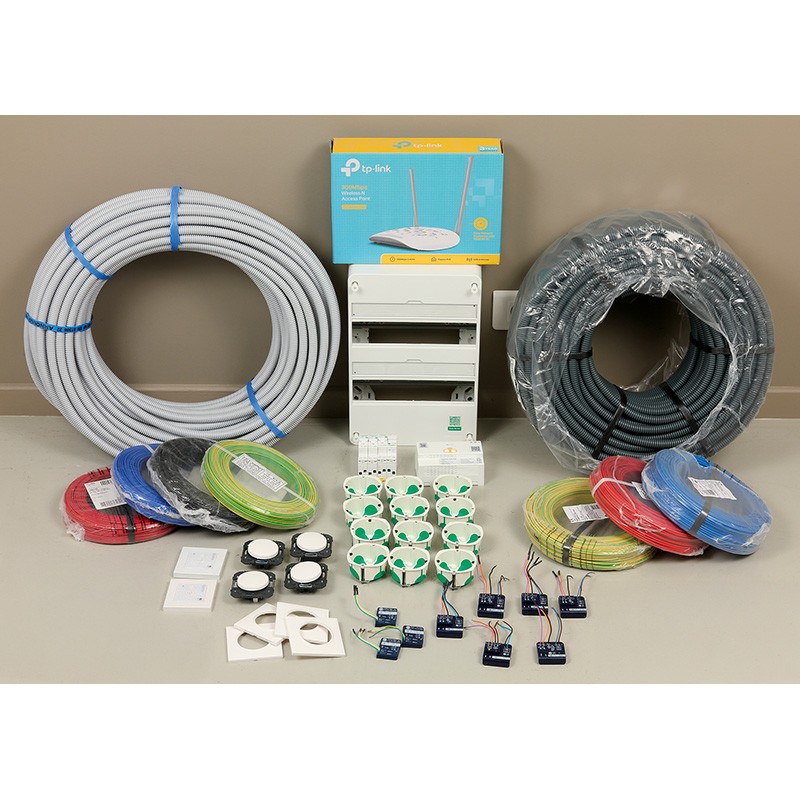

COMPOSITION
• 1 modular panel with 2 rows of 13 modules
• 2 Uni+ Neutral circuit breakers, rated 10A
• 2 Uni+ Neutral circuit breakers, rated 16A
• 2 2-button radio switches
• 4 mechanical switches
• 4 radio transmitter micromodules
• 1 roller shutter radio receiver module
• 4 radio receiver micromodules for single-lighting systems
• 1 variable-light radio receiver module
• 1 Wi-Fi router
• 1 Tahoma radio/Wi-Fi home automation interface for controlling SOMFY® components from a smartphone or tablet. Download the app for free from the Apple Store® and Android Store®.
• 100m of ICTA D16mm conduit + 100m of ICTA D20mm conduit
• 4 x 100m spools of 1.5mm² rigid wire (Blue, Black, Red, Green/Yellow)
• 3 x 100m spools of 2.5mm² rigid wire (Blue, Black, Green/Yellow)
• 12 drywall tubs
